SQUARE AIR CUTTERS

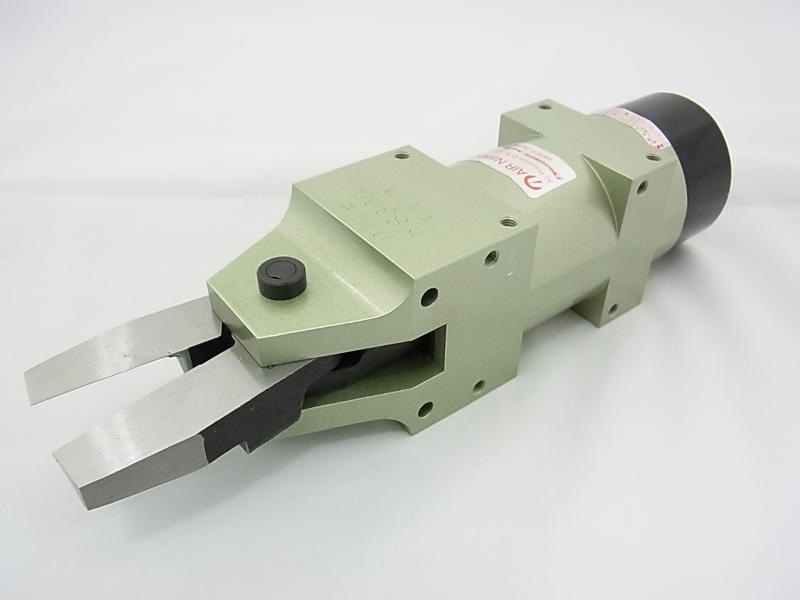

MS30G
(■blade is sold separately)

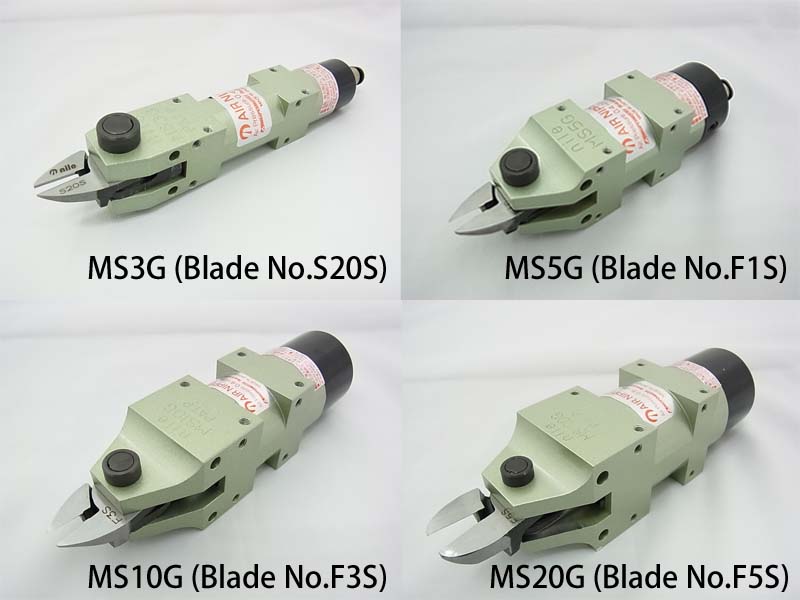

MS3G ,MS5G ,MS10G ,MS20G
(■blade is sold separately)

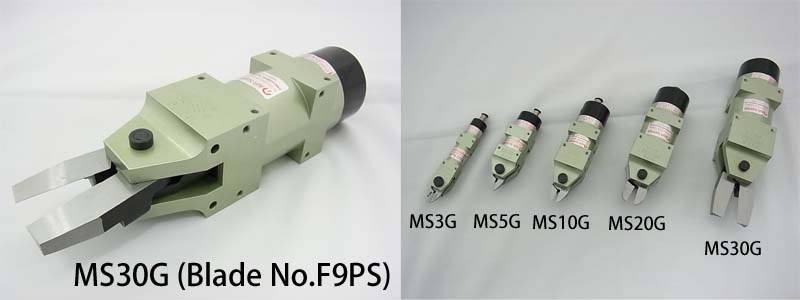

MS30G ,MS-G series line up
(■blade is sold separately)

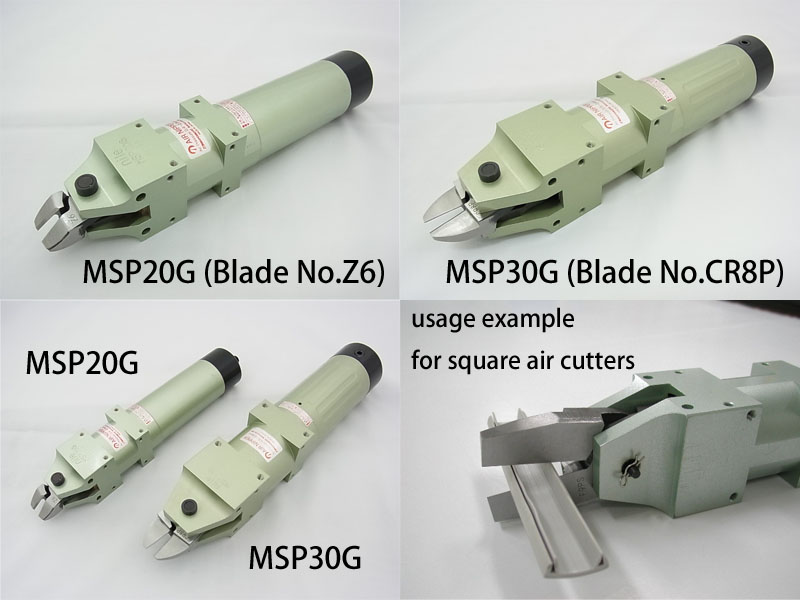

MSP20G ,MSP30G ,MSP-G series line up
(■blade is sold separately)

Here is a wide range of "NILE" air cutters to help you achieve higher productivity and remarkable cost saving in cutting, squeezing, pressing, bending and punching jobs for modern industries.
Equipped with different types of replaceable cutting blades, these air cutters can be versatile for various applications.
The square body has many holes for setting bolts to be mounted on any machines or stands.

Part number / Price

■MS3 / MS3G (minimum size)
■MS5 / MS5G (extra small size)
■MS10 / MS10G (small size)
■MS20 / MS20G (medium size)
■MS30 / MS30G (large size)
■MSP20 / MSP20G (medium size) (heavy-duty type)
■MSP30 / MSP30G (large size) (heavy-duty type)

Feature

MS3 / MS3G

Length:(MS3)110mm :(MS3G)101mm

Weight:(MS3)100g :(MS3G)75g Grip size:□20mm

Air consumption:31cm³/stroke Power:(approx.)265N

Air pressure:0.4~0.5MPa

Cutting capacity: steel-wire φ0.4mm, copper-wire φ0.8mm, piano-wire φ0.3mm, soft-plastic φ1mm



MS5 / MS5G

Length:(MS5)94mm :(MS5G)89mm

Weight:(MS5)160g :(MS5G)141g Grip size:□30mm

Air consumption:56cm³/stroke Power:(approx.)390N

Air pressure:0.4~0.5MPa

Cutting capacity: steel-wire φ0.5mm, copper-wire φ1mm, piano-wire φ0.3mm, soft-plastic φ2mm



MS10 / MS10G

Length:(MS10)113mm :(MS10G)117mm

Weight:(MS10)260g :(MS10G)254g Grip size:□36mm

Air consumption:105cm³/stroke Power:(approx.)580N

Air pressure:0.4~0.5MPa

Cutting capacity: steel-wire φ1mm, copper-wire φ1.6mm, piano-wire φ0.5mm, soft-plastic φ4mm, hard-plastic φ2.6mm



MS20 / MS20G

Length:(MS20)129mm :(MS20G)136mm

Weight:(MS20)430g :(MS20G)425g Grip size:□45mm

Air consumption:268cm³/stroke Power:(approx.)1,370N

Air pressure:0.5~0.6MPa

Cutting capacity: steel-wire φ2mm, copper-wire φ2.6mm, piano-wire φ1mm, soft-plastic φ7mm, hard-plastic φ5mm



MS30 / MS30G

Length:(MS30)170mm :(MS30G)177mm

Weight:(MS30)810g :(MS30G)788g Grip size:□56mm

Air consumption:631cm³/stroke Power:(approx.)2,740N

Air pressure:0.5~0.6MPa

Cutting capacity: steel-wire φ2.8mm, copper-wire φ3.3mm, piano-wire φ1.2mm, soft-plastic φ10mm, hard-plastic φ6.5mm



MSP20 / MSP20G

Length:(MSP20)216mm :(MSP20G)223mm

Weight:(MSP20)650g :(MSP20G)648g Grip size:□45mm

Air consumption:459cm³/stroke Power:(approx.)1,960N

Air pressure:0.4~0.5MPa

Cutting capacity: steel-wire φ2mm, copper-wire φ2.6mm, piano-wire φ1mm, soft-plastic φ7mm, hard-plastic φ5mm



MSP30 / MSP30G

Length:(MSP30)262mm :(MSP30G)269mm

Weight:(MSP30)1,220g :(MSP30G)1,115g Grip size:□56mm

Air consumption:1,146cm³/stroke Power:(approx.)4,410N

Air pressure:0.5~0.6MPa

Cutting capacity: steel-wire φ4mm, copper-wire φ4.8mm, piano-wire φ1.2mm, soft-plastic φ13mm, hard-plastic φ6.5mm





Optional blades: Initial of the blade number corresponding to the cutting of

steel-wire is the “S,P,CR,EP”

copper-wire is the “S,CR,EP”

piano-wire is the “Z”

plastic is the “F,FD”



Special blades: Even a piece of any type of special blade can be designed and manufactured to meet your particular application. Samples of actual work pieces are required on inquiry for designing and quoting.



Please see the PDF catalog for details.
