SLIDING AIR CUTTERS (FOR PLASTICS)

sliding air cutters (SN10)
(■blade is sold separately)

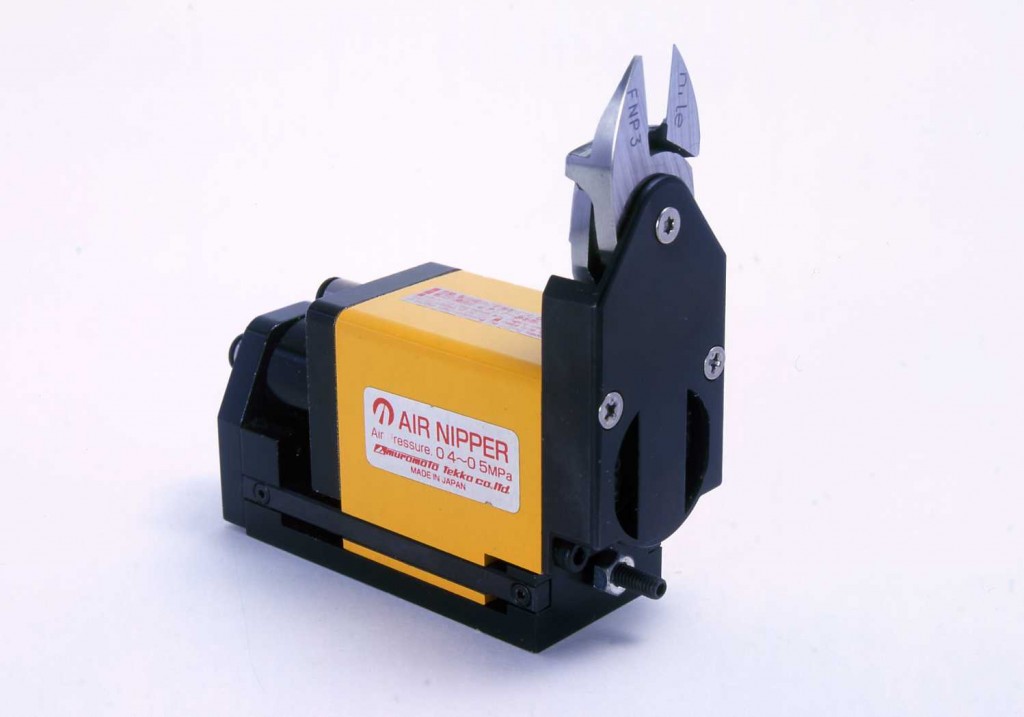

sliding air cutters (SNP10)
(■blade is sold separately)

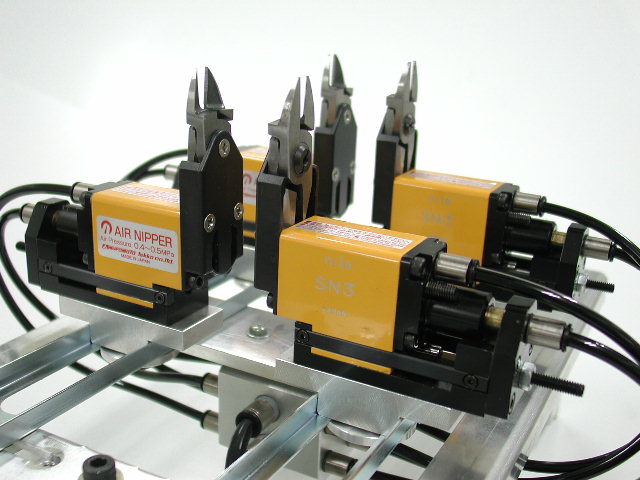

usage example for sliding air cutters

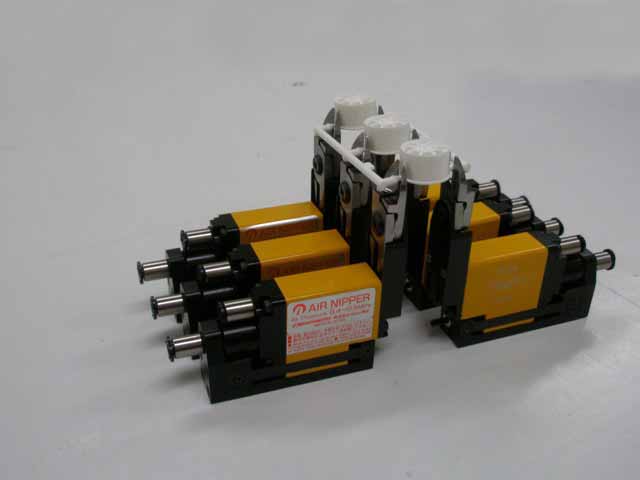

usage example for sliding air cutters

Gate cutting: use for cutting gate of molded resin products.

Part number / Price

SN-series: Pull & Cut type[SN3 / SN5 / SN10 / SN20]
SNP-series: Push & Cut type[SNP3 / SNP5 / SNP10 / SNP20]

Feature

[1] The unit travel distance is freely adjustable within 0-5 mm.

[2] The blade opening is adjustable by turning the adjusting bolt.

[3] Tube connection air inlet is installed for one touch quick connection with air hose.

[4] Any special cutting blade can be designed and manufactured to meet your application even for 1 piece.

[5] Cutting units are guided with parallel rails while traveling assuring the minimum play in vertical and horizontal direction.

[6] Blade holder can be set on the stand base at 90°angle either to left or right as illustrated.(Expecting SN3, SNP3.)

(Loosen counter-sunk screws and cap bolts, then turn blade holder plate together with piston and ring to the desired position and fix.)



Cutting Capacity (ABS Plastic):

[SN3 /SNP3]φ2mm.

[SN5 /SNP5]φ3mm.

[SN10 /SNP10]φ4mm.

[SN20 /SNP20]φ5mm.



Optional blades:

[FN10] for SN3.

[FNP10] for SNP3.

[FN1] for SN5.

[FNP1] for SNP5.

[FN3] for SN10.

[FNP3] for SNP10.

[FN5] for SN20.

[FNP5] for SNP20.



Please see the PDF catalog for details.
