muromoto product info

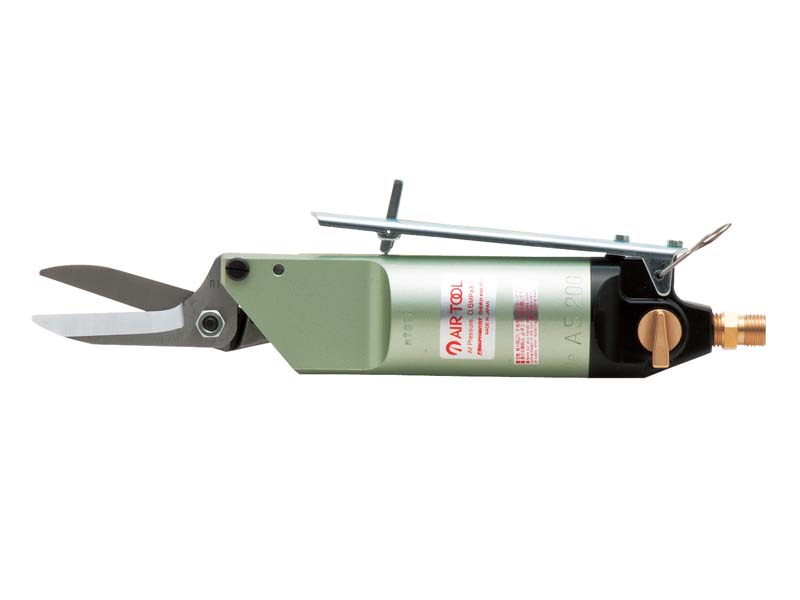

AIR SHEARS

AS200

AS200
(■blade is sold separately)

AS200, ASP250, AM20
(■blade is sold separately)

Suitable to cut slim metal plates, Plastic plates, wire nets, etc.

Part number / Price

AS100 (standard type)
AS200 (standard type)
ASP150 (heavy-duty type)
ASP250 (heavy-duty type)
AM3 (machine-fitting type)
AM10 (machine-fitting type)
AM20 (machine-fitting type)

Feature

AS100

Length(less blade):140mm   Weight: 230g   Grip size: 36φmm   Air consumption:137㎤/stroke   Air pressure: 0.5~0.6MPa   Blade type: No.100S, No.100R   Cutting capacity: (plate) 0.5×15mm



AS200

Length(less blade): 182mm   Weight: 500g   Grip size: 45φmm   Air consumption:227㎤/stroke   Air pressure: 0.5~0.6MPa   Blade type: No.200S, No.200R   Cutting capacity: (plate) 0.8×25mm, 1.0×10mm



ASP150

Length(less blade): 212mm   Weight: 300g   Grip size: 36φmm   Air consumption:274㎤/stroke   Air pressure: 0.5~0.6MPa   Blade type: No.100S, No.100R   Cutting capacity: (plate) 0.5×20mm



ASP250

Length(less blade): 269mm   Weight: 720g   Grip size: 45φmm   Air consumption:508㎤/stroke   Air pressure: 0.4~0.6MPa   Blade type: No.200S, No.200R   Cutting capacity: (plate) 0.8×25mm, 1.0×15mm



AM3

Length(less blade): 90mm   Weight: 103g   Grip size: 20φmm   Air consumption:137㎤/stroke   Air pressure: 0.5~0.6MPa   Blade type: No.30S   Cutting capacity: 0.8mm



AM10

Length(less blade): 109mm   Weight: 296g   Grip size: 36φmm   Air consumption:137㎤/stroke   Air pressure: 0.5~0.6MPa   Blade type: No.100S, No.100R   Cutting capacity: (plate) 0.5×15mm



AM20

Length(less blade): 139mm   Weight: 507g   Grip size: 45φmm   Air consumption:227㎤/stroke   Air pressure: 0.5~0.6MPa   Blade type: No.200S, No.200R   Cutting capacity: (plate) 0.8×25mm, 1.0×10mm



Optional Blades:

[No.100S, No.100R] for AS100, ASP150, AM10

[No.200S, No200R] for AS200, ASP250, AM20

(※No.100S, No.200S : Blade tip pointed)

(※No.100R, No200R : Blade tip round)

[No.30S] for AS30, AM3



Please see the PDF catalog for details.
