ZA185 Movie
1050H
usage example for 1050H

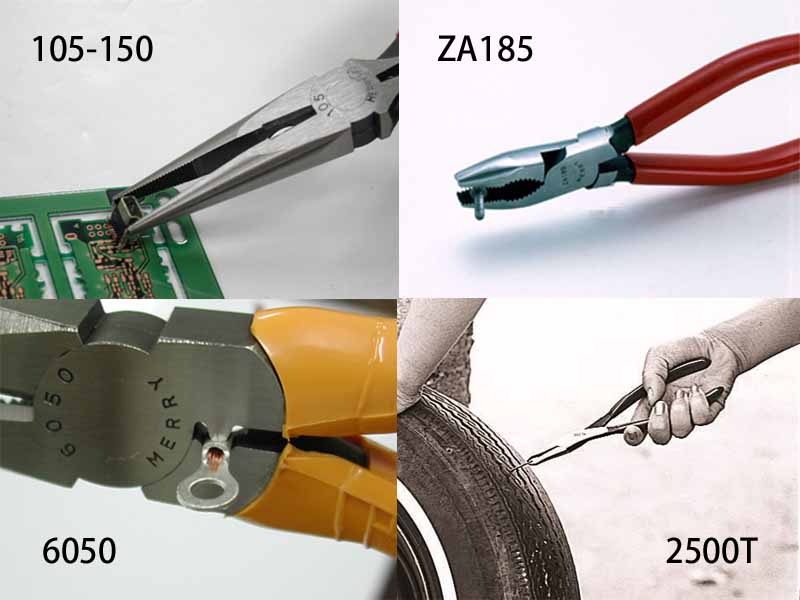

usage example for pliers
Pliers can be a lot of work to bending, pinching, pulling, twisting, and cutting the wire and copper wire.
Part number / Price
■1050 / 1050H (Standard type)
■2050 (with high leverage type)
■6050 (with crimping sleeve type)
■2080N (Slim type)
■XP200 (for electrical work)
■2060N (with high leverage type and with crimping sleeve)
■105 /105H (long nose side cutting pliers)
■150 (long nose side cutting pliers / slim type)
■ZA185 (screw pliers)
■Y75 (heavy-duty semi-long nose pliers)
■2500R (long reach needle nose pliers)
■2500T (nail pliers for tire repair)
Feature
It has been polished with a diamond wheel cutting, excellent sharpness.
Cutting capacity:
[1050-150] steel-wire φ2mm, copper-wire φ3mm.
[1050-175] steel-wire φ2.6mm, copper-wire φ3.5mm.
[1050-200] steel-wire φ3.2mm, copper-wire φ4mm.
[1050H-150] steel-wire φ2mm, copper-wire φ3mm.
[1050H-175] steel-wire φ2.6mm, copper-wire φ3.5mm.
[1050H-200] steel-wire φ3.2mm, copper-wire φ4mm.
[2050-185] steel-wire φ3.2mm, copper-wire φ4mm.
[2050-225] steel-wire φ3.6mm, copper-wire φ4.5mm.
[6050-185] steel-wire φ2.6mm, copper-wire φ3.5mm.
[2080N-185] steel-wire φ3.2mm, copper-wire φ4mm.
[2080N-210] steel-wire φ3.6mm, copper-wire φ4.5mm.
[XP200] steel-wire φ3.6mm, copper-wire φ4.5mm.
[2060N] steel-wire φ3.2mm, copper-wire φ4mm.
[105-150 / 105H-150] steel-wire φ1.5mm, copper-wire φ2.6mm.
[105-175 / 105H-175] steel-wire φ2mm, copper-wire φ3mm.
[150-150] steel-wire φ1.2mm, copper-wire φ2mm.
Please see the PDF catalog for details. (size, weight etc.)
