MINIATURE NIPPERS & PLIERS

04

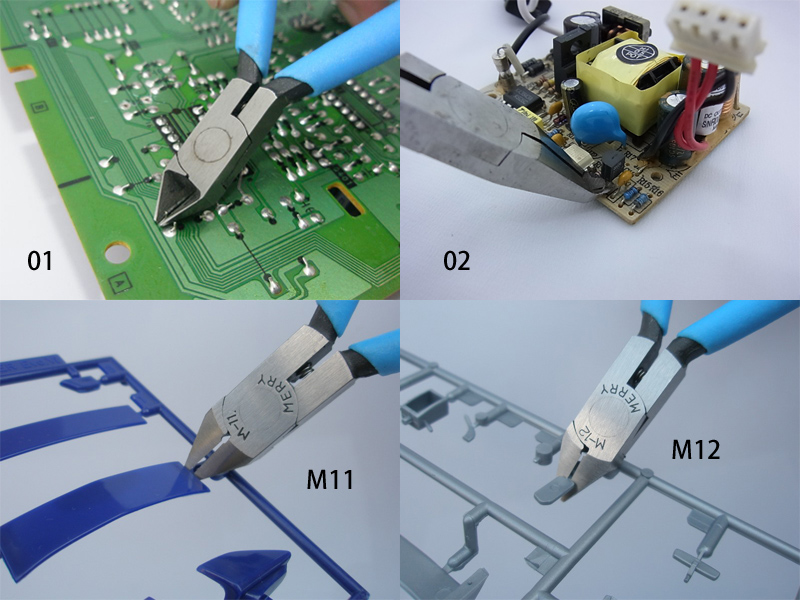

usage example for Miniature Series

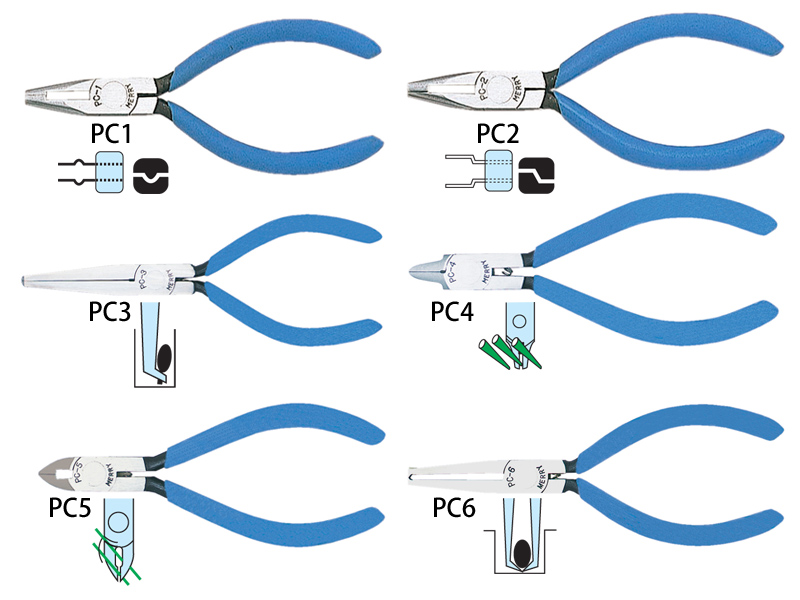

usage example for PC Series

miniature nippers and pliers is small, is finished precisely, and fits assembling work, such as the electronics field, precision instruments, and precious-metals-related.

Part number / Price

■01 (miniature nippers)
■02 (miniature nippers / tip edge type)
■03 (miniature nippers)

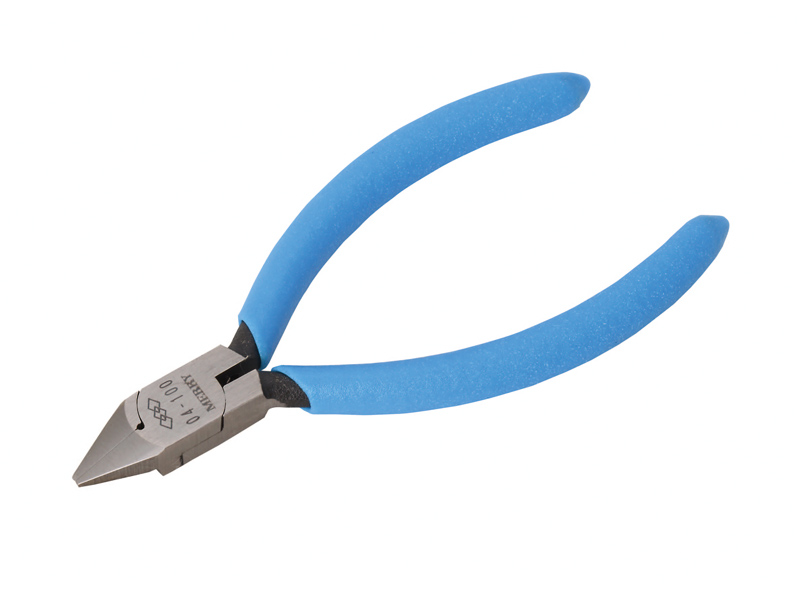

■04 (miniature nippers / blade back side scooped out)
■05 (miniature nippers / with stripping hole)
■06 (miniature needle pliers)
■07 (miniature bent nose pliers)
■08 (miniature flat nose pliers)
■09 (miniature semi needle pliers)
■M10 (miniature long needle pliers)
■M11 (miniature plastic cutting nippers)
■M12 (miniature plastic cutting nippers)
■M13 (miniature needle pliers / serrated)
■M14 (miniature side cutting pliers / serrated)
■M15 (miniature chain nose pliers)
■M16 (miniature end cutting nippers)
■PC1 (PC forming pliers / for bending lead wires)
■PC2 (PC forming pliers / for bending lead wires)
■PC3 (PC bent nose pliers / for grasping in narrow and deep spaces)
■PC4 (PC nippers / for cutting in narrow spaces)
■PC5 (PC nippers / for cutting beyond certain articles)
■PC6 (PC end cutting nippers / for cutting in deep spaces)

Feature

with opening spring.



Cutting capacity:

[01 / 02 /03 / 04 / 05 / M16 / PC6] steel-wire φ0.5mm, copper-wire φ0.8mm.

[M14] steel-wire φ1.2mm, copper-wire φ2mm.

[M11 / M12] soft-resin φ3mm.

[PC4] steel-wire φ0.9mm, copper-wire φ1.6mm.

[PC5] steel-wire φ0.7mm, copper-wire φ1.6mm.



Please see the PDF catalog for details. (size, weight etc.)
