MINI BELTERS

MB20S

MB20S

MINI BELTERS Series

Chamfering work is easy.

Part number / Price

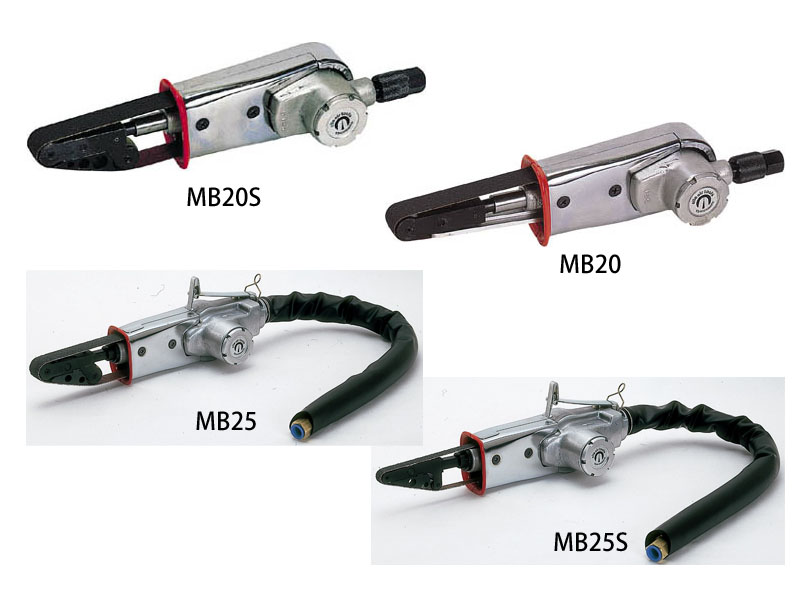

MB20S (standard type)
MB20 (for use in limited places or for spot sanding)
MB25 (lever type, belt width 20mm)
MB25S (lever type, belt width 10mm)

Feature

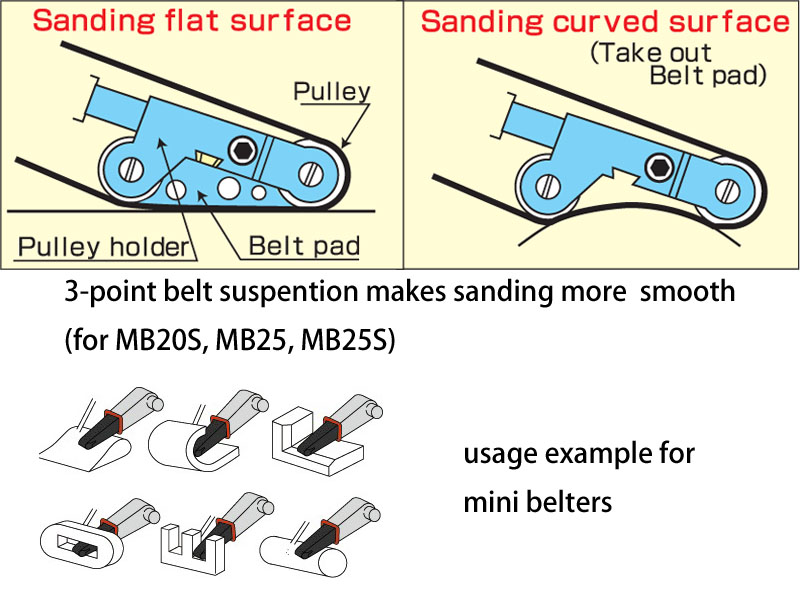

3-point belt supporting system offers easier and more smooth sanding operation for better finish.



■MB20S (standard type)

Length:290mm   Weight:1,080g   Air consumption:300l/min   Air pressure:0.5~0.6MPa   Free belt speed:2,200m/min   Belt size:20mm×520mm



■MB25 (for rear exhaust and for lever type, belt width 20mm)

Length:780mm   Weight:1,480g   Air consumption:300l/min   Air pressure:0.5~0.6MPa   Free belt speed:2,200m/min   Belt size:20mm×520mm



■MB25S (for rear exhaust and for lever type, belt width 10mm)

Length:780mm   Weight:1,350g   Air consumption:300l/min   Air pressure:0.5~0.6MPa   Free belt speed:2,200m/min   Belt size:10mm×520mm



2-point belt supporting system offers easier and more smooth sanding operation for better finish.



■MB20 (for use in limited places or for spot sanding type)

Length:290mm   Weight:930g   Air consumption:300l/min   Air pressure:0.5~0.6MPa   Free belt speed:2,200m/min   Belt size:20mm×520mm



Applications:

Sanding for various auto-repair services such as…

removing spot welding, removing paint off flat or curved surfaces, removing adhesives, removing welding bead.

Finishing wood work.

Deburring small metal products.

General finishing work.

Removing rust.

Other sanding and polishing work.



Optional accessories:

Abrasive cloth belts (Sanding belt of zirconia zesin)

#40 (20 pieces): for MB20S, MB25, MB20

#60 (20 pieces): for MB20S, MB25, MB20

#100 (20 pieces): for MB20S, MB25, MB20

#60-10 (20 pieces): for MB25S

#100-10 (20 pieces): for MB25S



Please see the PDF catalog for details.
