CURL HOSE

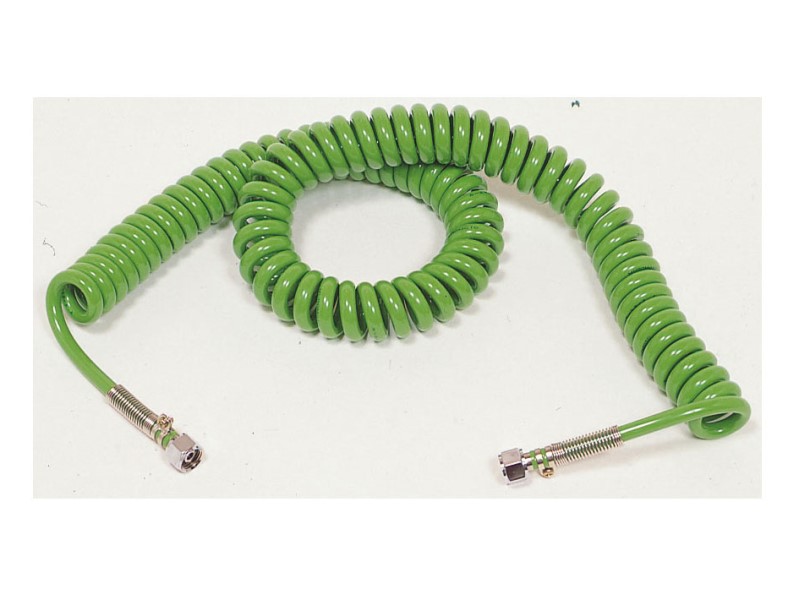

Curl Hose (standard type)

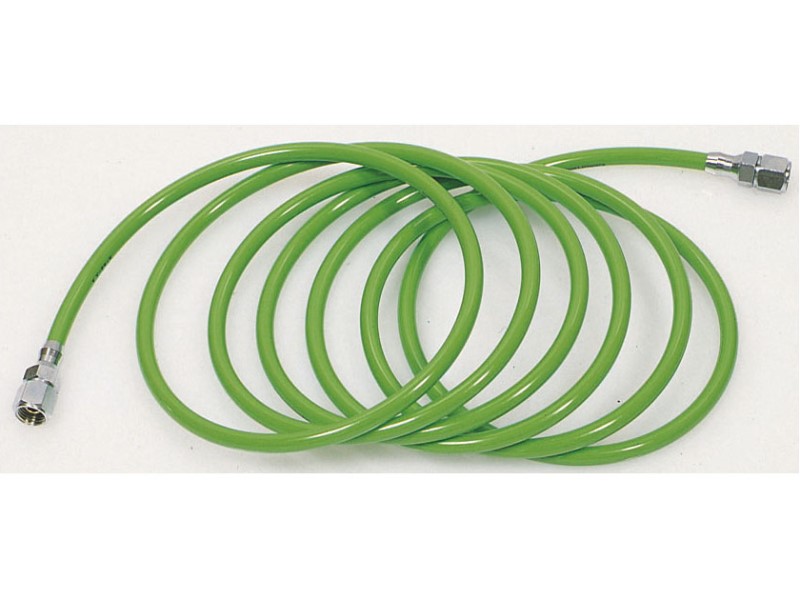

Straight Hose (UH Type)

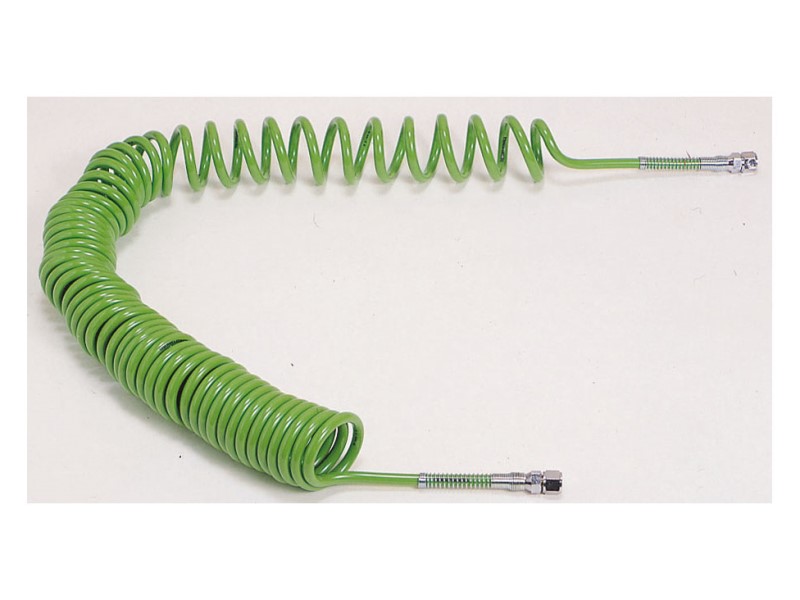

Thickly Rolled Curl Hose (CHL Type)

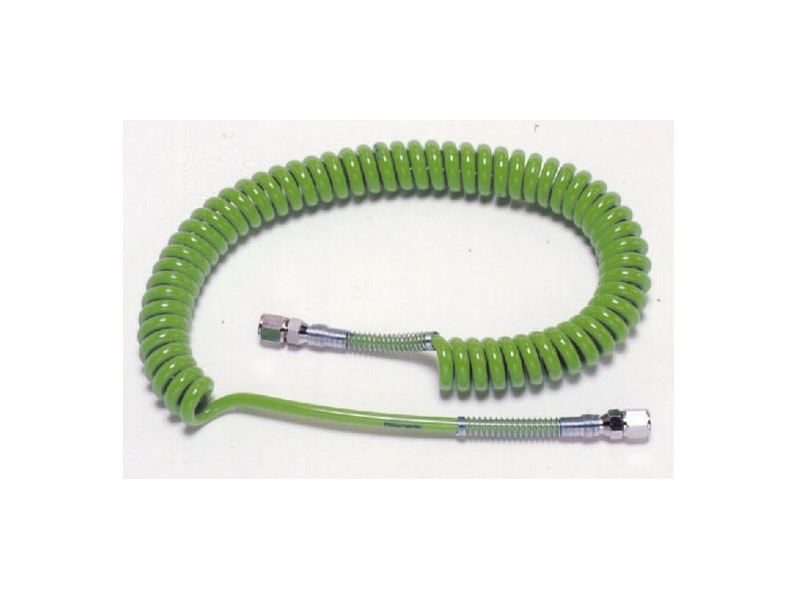

Curl Hose (SE Type)

Curl hose. It is covered with pure urethane tube utilizing the properties of the thermoplastic polyurethane resin.
It is an epoch-making air hose of outer diameter only φ28mm.

Part number / Price

■Curl Hose (standard type)
■Curl Hose (with straight hose type)
■Jumbo Curl Hose (G type)
■Mini Curl Hose (M type)
■Straight Hose (UH type)
■Thickly Rolled Curl Hose (CHL type)
■Curl Hose (SE type)
■Curl Hose (GS type)
■Strech Curl Hose
■Large Diameter Strech Curl Hose
■Bala Curl

Feature

◎ Appearance:The outer diameter is Ф28mm (standard type) ; therefore light and easy to handle.
◎ Flexibility:It is flexible and light weight(1/3 of the rubber hose); therefore grip operation is easy and makes your work simple.
◎ Elasticity:It has high repulsion characteristics and can endure severe use.
◎ Wear resistance:Wear resistance is 3-5 times that of rubber hose.
◎ Chemical resistance:Except for hydrochloric acid, phosphoric acid, sulfuric acid, nitric acid, and caustic soda, methyl chloride,chlorine-Benz aldehyde non-human. It use the material for the best that can withstand most (30 days soaked)
◎ Heat resistant:Up to 70 °C

◎ Cold resistant:It do not spoil the flexibility even in the state of -10 °C
◎ Pressure resistance:It will tolerate a 300,000 times or more expansion and contraction test in air pressure 0.7MPa.
◎ Operability:The outside diameter of the curl is narrow and the both end of the hose are straight for a certain size, therefore it won’t rent even handling them roughly.

◎ Color tone:The color of the hose is mellow green to prevent eyestrain.

■Utility : Cylinder apparatus, Coating spray gun, Industrial equipment, Food machinery, Medical equipment, Pneumatic tools General.



Please see the PDF catalog for details.
