AIR HEAT CUTTERS

AH30 (Blade No.FA30S)

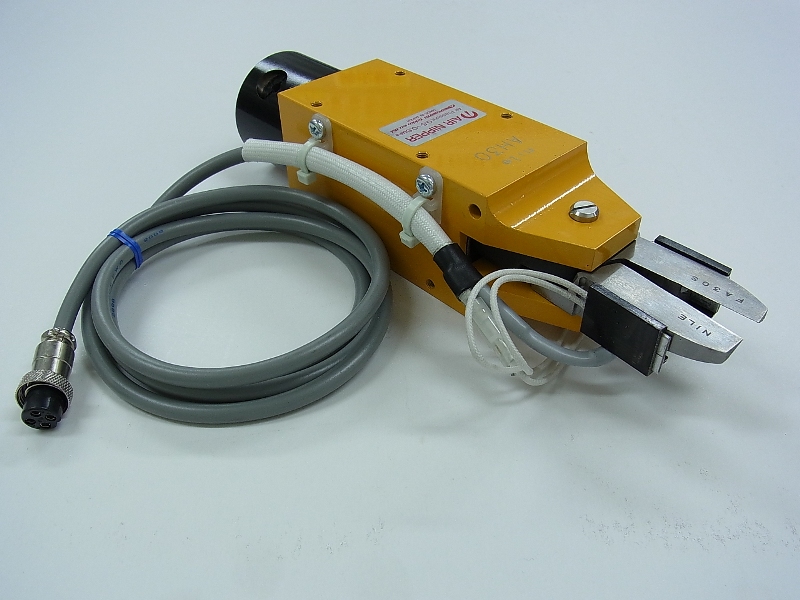

air heat cutters (AH30)
(■blade is sold separately)

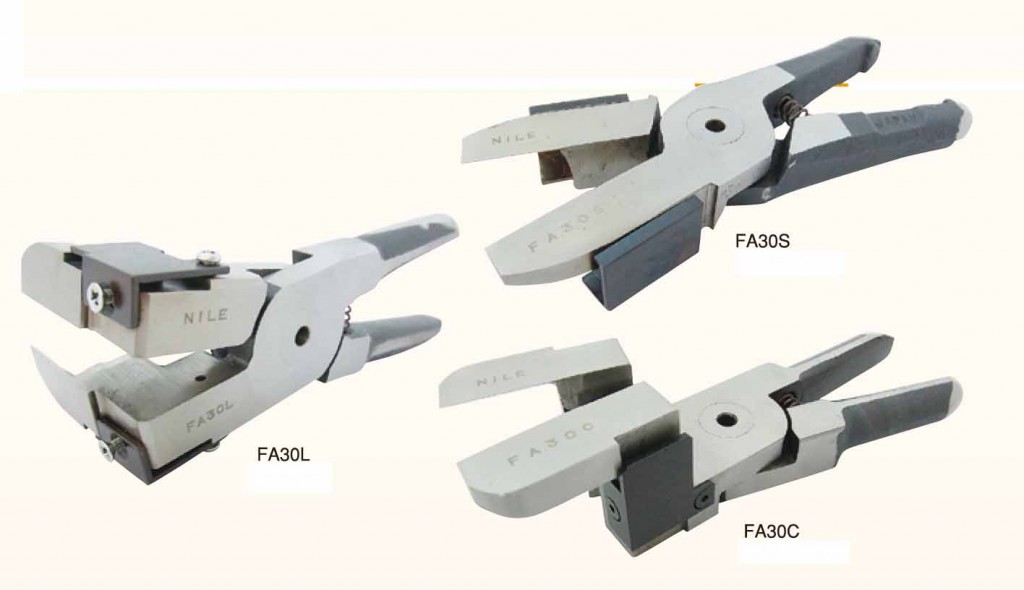

optional blades
●straight type (FA30S)
●L type (FA30L)
●crank type (FA30C)

digital indication type transformer (HTR100W)
for AH20 and AH30

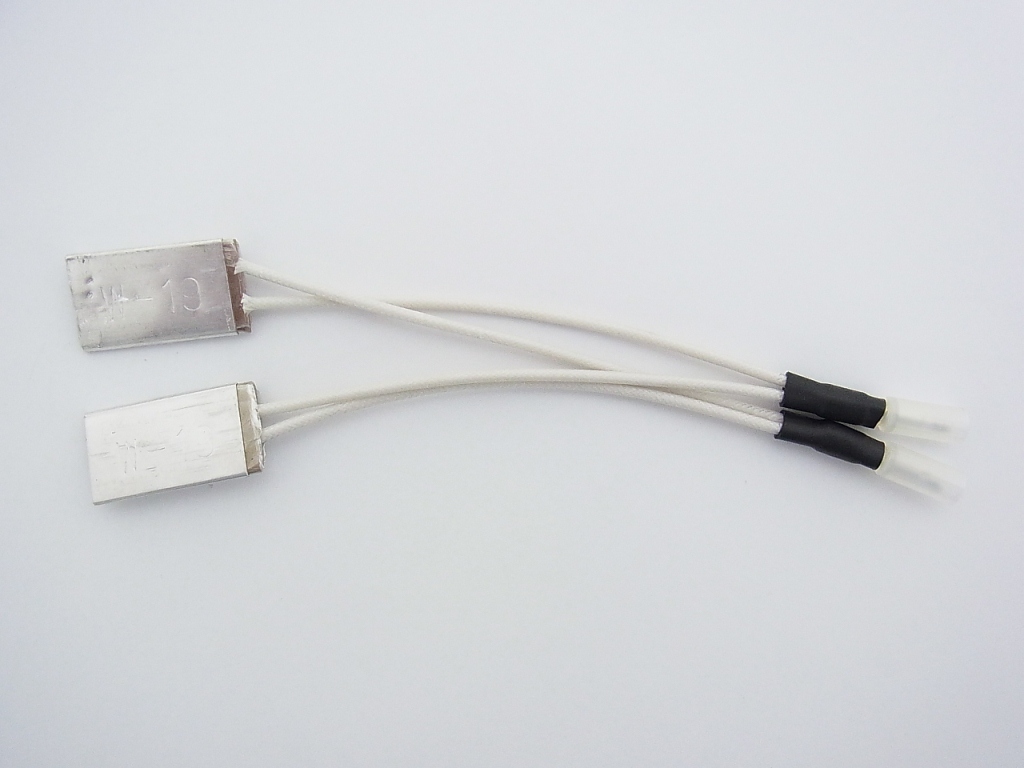

heater (W19W)
for AH20 and AH30

Cutting blades are heated for easy cutting.

Part number / Price

AH20 /AH30 (Double-heater type)
AH5 /AH8 (Single-heater type)

Feature

[1] Suitable for cutting fragile materials such as Acryl and Glass resin, etc.

[2] Square body is easy to be set to stands or machinery.

[3] Indispensable for resin molding works.

[4] Operate through solenoid valve or foot-valve (FB70S).

[5] Cutting speed can be adjusted through air regulator.

[※6] Double-heater can set temperature in wide range between 70-200℃ to fit each resin gate at the most suitable temperature.

[※7] 3 models of replaceable blades are available to suite various kinds of gate cutting jobs.

[※6][※7]…AH20 and AH30 limited



Cutting Capacity:

[AH20]φ6mm.

[AH30]φ7mm.

[AH5]φ3mm.

[AH8]φ4mm.



Optional blade:

[FA20S /FA20L /FA20C] for AH20.

[FA30S /FA30L /FA30C] for AH30.

[FA5] for AH5.

[FA8] for AH8.



Optional heater:

[W19W] for AH20 /AH30.

[W19] for AH5 /AH8.



Optional transformer:

[HTR100W] for AH20 /AH30.

[HTR30N-100V] for AH5 /AH8.



Optional Step-Down transformer: [HDT100]. This Step-Down type transformer is requested to be used in combination with our standard transformer HTR30N-100V and HTR100W for Japanese 100V standardized power tools when operated in 220V~240V standardized overseas countries.



Please see the PDF catalog for details.
