AIR FIL-SAWS

AIR FIL-SAWS

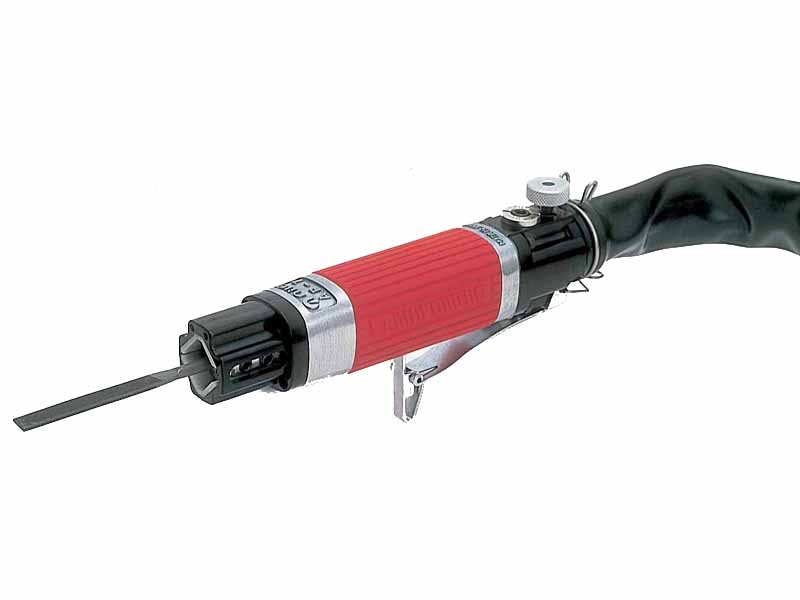

air fil-saws AF10S (fil)

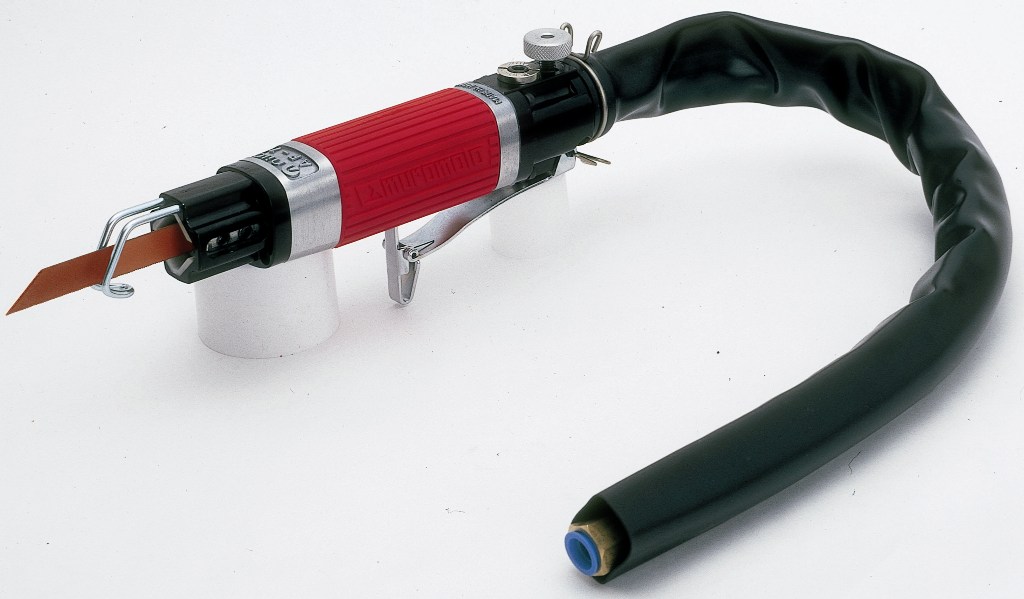

air fil-saws AF10S (saw)

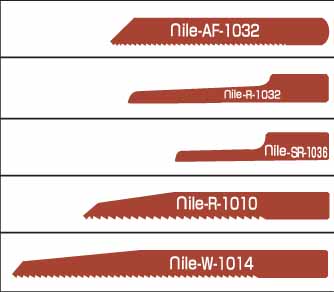

cutting blade for AF10S

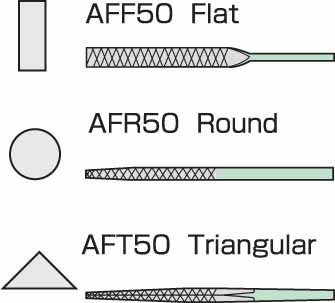

filing blade for AF10S

Pneumatic saw & file.Cutting metal plates with saw blade.
Finishing dies with file. Deburring die-castings with file.

Part number / Price

AF10S ( Stroke : 10mm )
AF7 ( Stroke : 7mm )
AF7S ( Stroke : 5mm )

Feature

AF10S

Length:201mm Weight:750g Grip size:□39×37mm

Air consumption:280ℓ/min Air pressure:0.65MPa

Reciprocating speed:5,500strokes/min

Cutting capacity:

1mm metal plate:1,000mm/min   3mm metal plate:180mm/min



AF7 / AF7S

Length:180mm Weight:650g Grip size:□39×37mm

Air consumption:280ℓ/min Air pressure:0.65MPa

Reciprocating speed:

(AF7) 6,900strokes/min   (AF7S) 8,400strokes/min

Cutting capacity:

(AF7) 1mm metal plate:900mm/min   3mm metal plate:135mm/min

(AF7S) 1mm metal plate:850mm/min   3mm metal plate:135mm/min



Light in weight and silent in operation.

Lubricant inlet is set for easy lubrication.

Easy to adjust air flow.

No play between head and holder for minimum vibration.

Soft air hose is used for comfortable operation.

Higher cutting and finishing efficiency is assured.



Accessories:

Saw blade

(1)Steel straight cut type (AF1032). 2 pieces.

(2)Steel circle cut type (R1032). 1 piece.

Files

(1)Flat type (AFF50). 1 piece.

(2)Round type(AFR50). 1 piece.

(3)Triangular type(AFT50). 1 piece.



Optional accessories:

Saw blade

(1)Steel straight cut type (AF1032). 10 pieces.

(2)Steel circle cut type (R1032). 10 pieces.

(3)Steel small-circle cut type (SR1036). 10 pieces.

(4)Urethane bumper cut type (R1010). 10 pieces.

(5)Timber Aluminium cut type(W1014). 10 pieces.

Files

(1)Flat type (AFF50). 1 piece.

(2)Round type(AFR50). 1 piece.

(3)Triangular type(AFT50). 1 piece.



Please see the PDF catalog for details.
